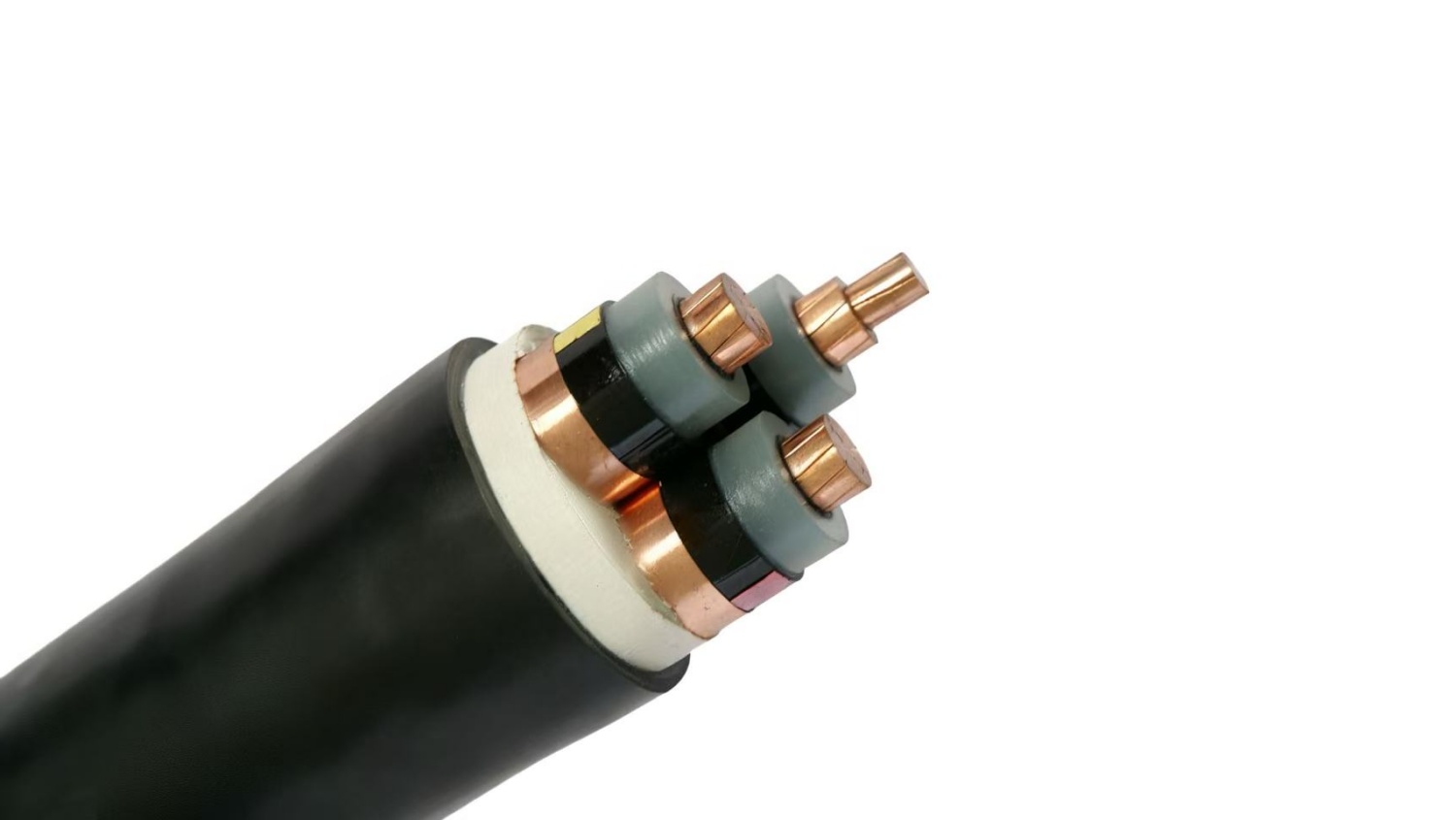

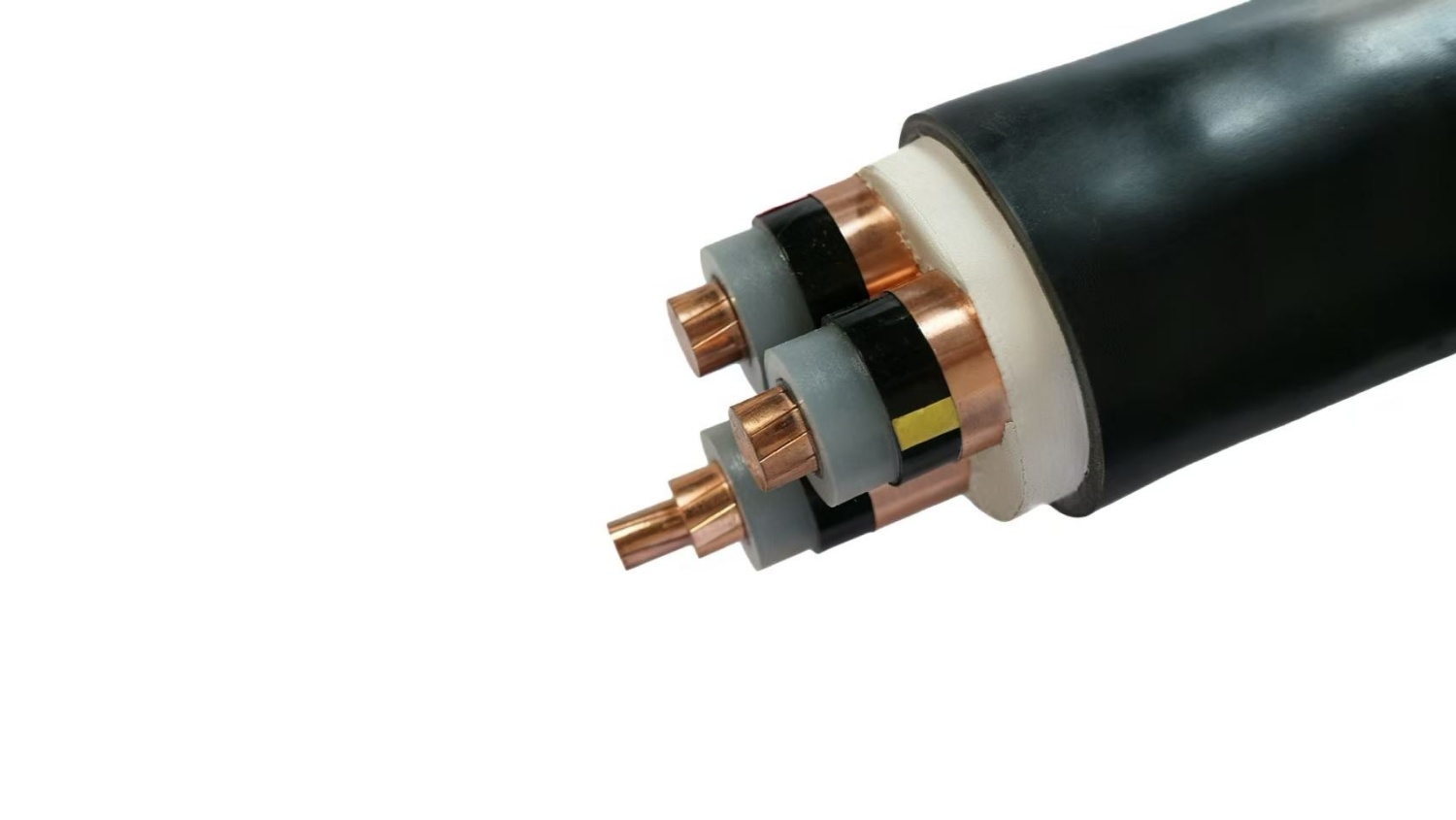

Copper Core XLPE Insulated PVC Sheathed Power Cable
Model: YJV-8.7/15kV 3x120
| Product Parameters: |
|
Rated Voltage: 8.7/15kV Conductor Material: Stranded Copper Conductor Conductor Cross-Section: 3 Cores 120mm² Insulation Material: Cross-Linked Polyethylene (XLPE) Insulation Thickness: 4.3mm Sheath Material: Polyvinyl Chloride (PVC) Sheath Thickness: 2.8mm Operating Temperature: -40℃ ~ +90℃ Short-Circuit Withstand Temperature: 250℃ Minimum Laying Temperature: 0℃ Bending Radius: 15D (15 times the cable outer diameter) |
| Technical Standards: |
| GB/T12706.2-2020 |
Share
Describe
Application Scenario:
This cable is mainly used for:
- Urban Power Distribution Networks: Especially in the underground power grids of urban residential districts.
- Power Station Outgoing Lines: Serving as the outgoing lines of power plants and substations to transmit and distribute electrical energy.
- Industrial Power Distribution: Fixed laying in the internal power distribution networks of industrial installations such as industrial and mining enterprises.
- System Grounding Method: This cable (8.7/15kV) is designed for 15kV power distribution systems with effectively grounded neutral points. When selecting the cable, this point needs to match the grounding method of the power system.
| XLPE Insulated Power Cables | |
| Product Models | |
| Models | Name |
| YJV, YJLV | Copper/Aluminum Core XLPE Insulated, PVC Sheathed Power Cable |
| ZR-YJV, ZR-YJLV | |
| YJV22, YJLV22 | Copper/Aluminum Core XLPE Insulated, Steel Tape Armored PVC Sheathed Power Cable |
| ZR-YJV22, ZR-YJLV22 | |
| YJV32, YJLV32 | Copper/Aluminum Core XLPE Insulated, Steel Wire Armored PVC Sheathed Power Cable |
| ZR-YJV32, ZR-YJLV32 | |
