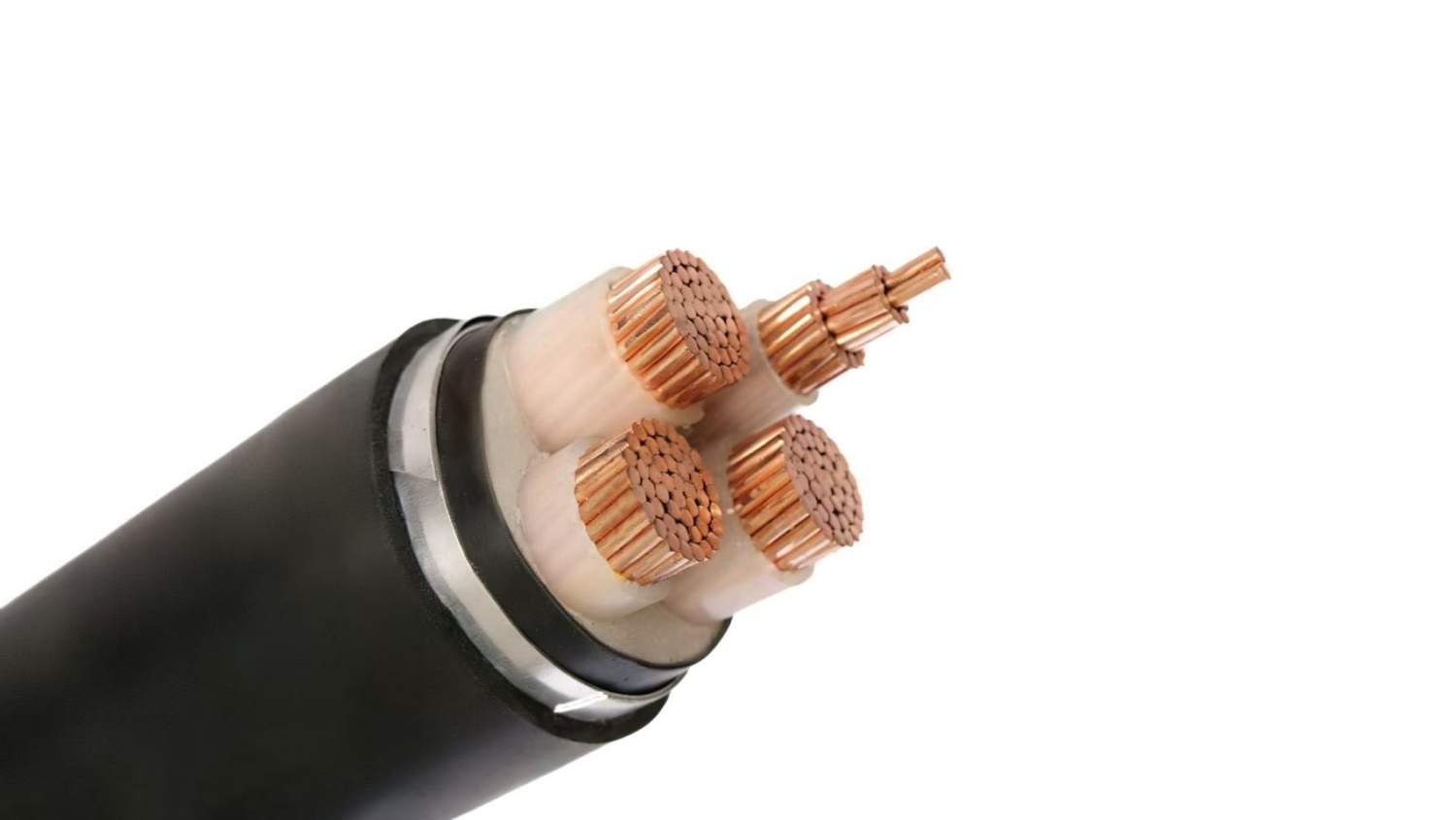

Copper Core XLPE Insulated Steel Tape Armored PVC Sheathed Power Cable
Model: YJV22-0.6/1kV 3x240+1x120
| Product Parameters: |
|
Rated Voltage: 0.6/1kV Conductor Material: Stranded Copper Conductor Conductor Cross-Section: 3 Cores 240mm² + 1 Core 120mm² Insulation Material: Irradiated Cross-Linked Polyethylene (XLPE) Insulation Thickness: 1.7mm (for 240mm² cores); 1.2mm (for 120mm² core) Sheath Material: Polyvinyl Chloride (PVC) Sheath Thickness: 2.8mm Operating Temperature: -40℃ ~ +90℃ Short-Circuit Withstand Temperature: 250℃ Minimum Laying Temperature: 0℃ Bending Radius: 12D (12 times the cable outer diameter) |
| Technical Standards: |
| GB/T12706.1-2020 |
Share
Describe
Application Scenario:
Based on its robust structure and performance, this cable is mainly suitable for:
- Fixed laying in indoor areas, tunnels, cable trenches, or pipelines.
- Direct burial installation: Thanks to the mechanical protection provided by its steel tape armor, it is particularly suitable for rocky areas or scenarios requiring direct burial.
- Power transmission in industrial and mining enterprises, buildings, power plants, and other fields: As a main power distribution line, it is also widely used in chemical, metallurgical, and other environments.
- Urban power grid construction and renovation: As a trunk line or feeder in low-voltage power distribution networks of 1kV and below.
| XLPE Insulated Power Cables | |
| Product Models | |
| Models | Name |
| YJV, YJLV | Copper/Aluminum Core XLPE Insulated, PVC Sheathed Power Cable |
| ZR-YJV, ZR-YJLV | |
| YJV22, YJLV22 | Copper/Aluminum Core XLPE Insulated, Steel Tape Armored PVC Sheathed Power Cable |
| ZR-YJV22, ZR-YJLV22 | |
| YJV32, YJLV32 | Copper/Aluminum Core XLPE Insulated, Steel Wire Armored PVC Sheathed Power Cable |
| ZR-YJV32, ZR-YJLV32 | |
