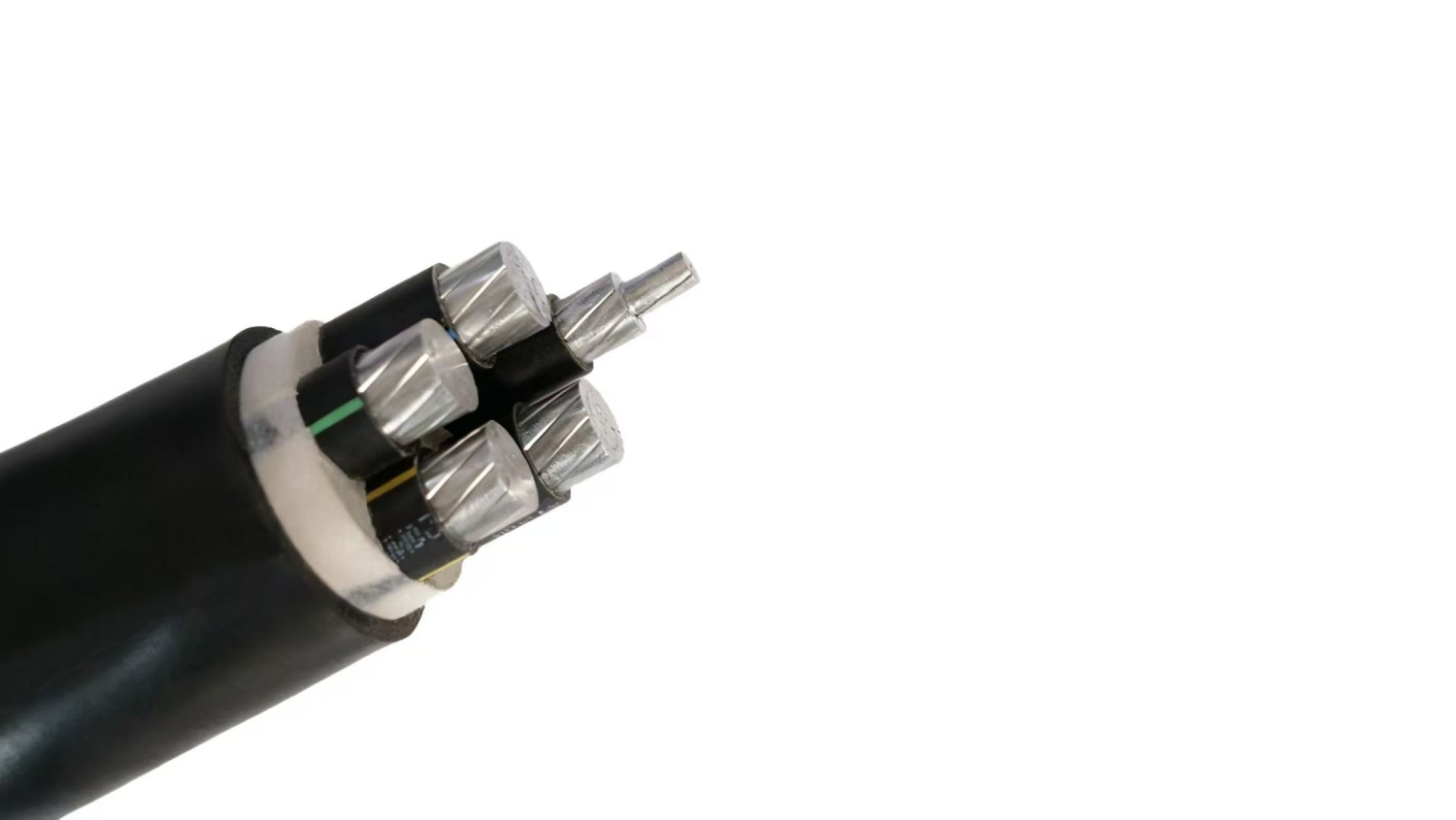

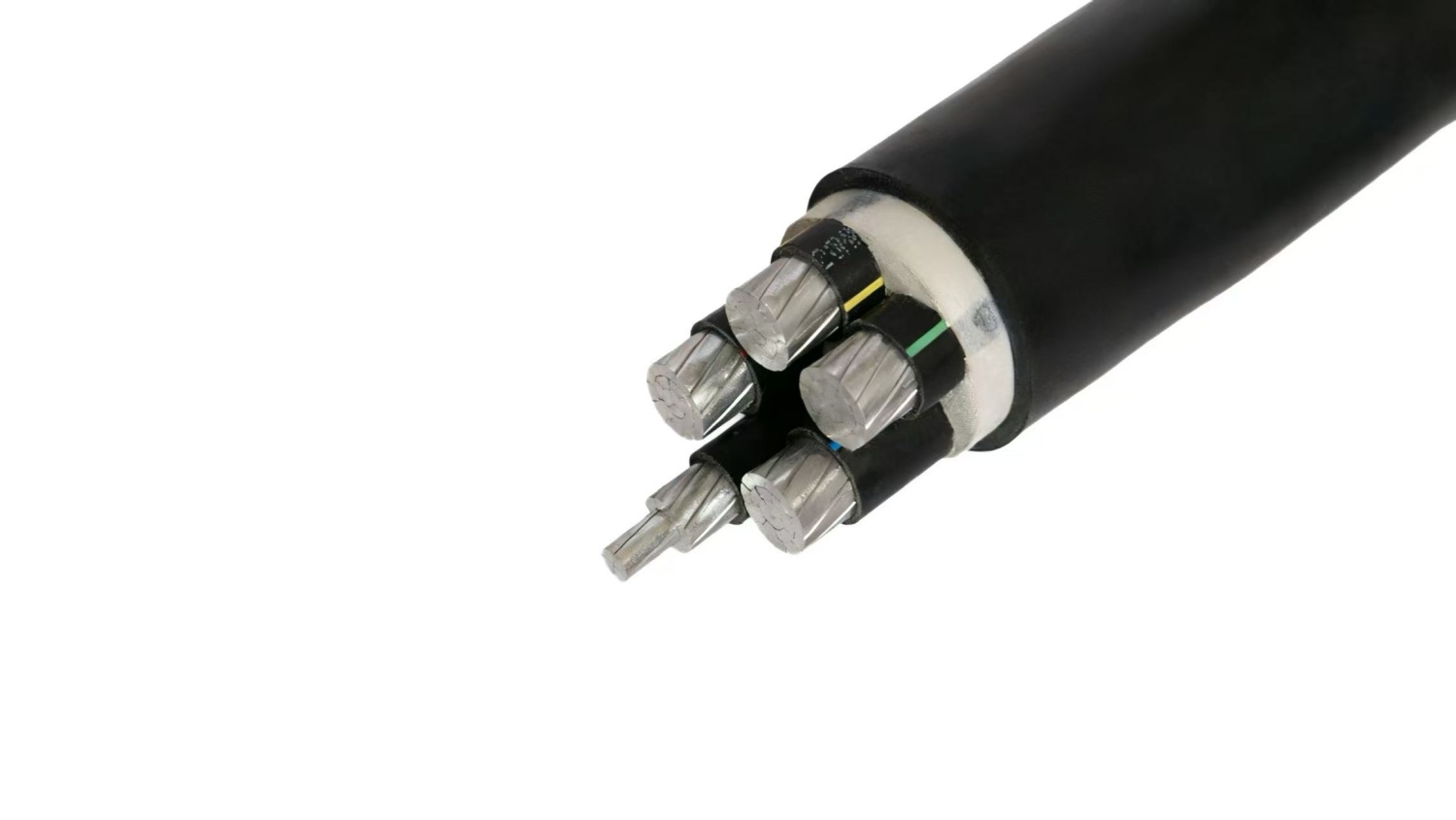

Aluminum Core XLPE Insulated PVC Sheathed Power Cable
Model: YJLV-0.6/1kV 4x150+1x70
| Product Parameters: |
|
Rated Voltage: 0.6/1kV Conductor Material: Stranded Aluminum Conductor Conductor Cross-Section: 4 Cores 150mm² + 1 Core 70mm² Insulation Material: Irradiated Cross-Linked Polyethylene (XLPE) Insulation Thickness: 1.4mm (for 150mm² cores); 1.1mm (for 70mm² core) Sheath Material: Polyvinyl Chloride (PVC) Sheath Thickness: 2.5mm Operating Temperature: -40℃ ~ +90℃ Short-Circuit Withstand Temperature: 250℃ Minimum Laying Temperature: 0℃ Bending Radius: 15D (15 times the cable outer diameter) |
| Technical Standards: |
| GB/T12706.1-2020 |
Share
Describe
Application Scenario:
This cable is designed for fixed installation in AC power transmission and distribution lines with a rated voltage of 0.6/1kV, commonly used in:
- Internal power supply of urban power grids and industrial and mining enterprises.
- Installation in indoor areas, cable trenches, pipelines, and other similar locations.
- Suitable for fixed laying scenarios where mechanical external forces cannot be tolerated. For direct burial or applications requiring resistance to significant mechanical external forces, armor-equipped models (e.g., YJLV22) should be selected.
| XLPE Insulated Power Cables | |
| Product Models | |
| Models | Name |
| YJV, YJLV | Copper/Aluminum Core XLPE Insulated, PVC Sheathed Power Cable |
| ZR-YJV, ZR-YJLV | |
| YJV22, YJLV22 | Copper/Aluminum Core XLPE Insulated, Steel Tape Armored PVC Sheathed Power Cable |
| ZR-YJV22, ZR-YJLV22 | |
| YJV32, YJLV32 | Copper/Aluminum Core XLPE Insulated, Steel Wire Armored PVC Sheathed Power Cable |
| ZR-YJV32, ZR-YJLV32 | |
