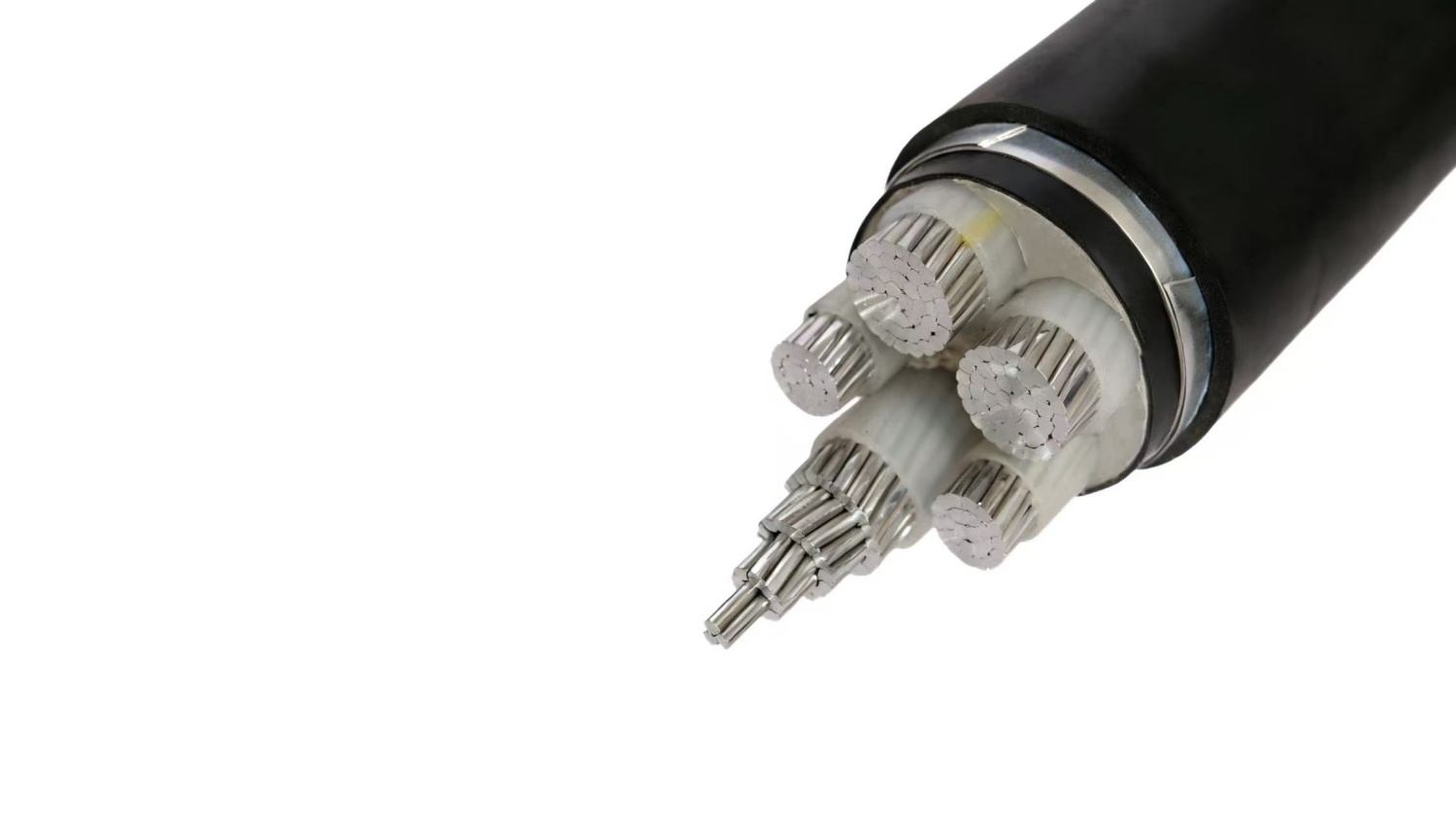

Aluminum Core XLPE Insulated PVC Sheathed Power Cable
Model: YJLV-0.6/1kV 3x240+2x120
| Product Parameters: |
|
Rated Voltage: 0.6/1kV Conductor Material: Stranded Aluminum Conductor Conductor Cross-Section: 3 Cores 240mm² + 2 Cores 120mm² Insulation Material: Irradiated Cross-Linked Polyethylene (XLPE) Insulation Thickness: 1.7mm (for 240mm² cores); 1.2mm (for 120mm² cores) Sheath Material: Polyvinyl Chloride (PVC) Sheath Thickness: 2.7mm Operating Temperature: -40℃ ~ +90℃ Short-Circuit Withstand Temperature: 250℃ Minimum Laying Temperature: 0℃ Bending Radius: 15D (15 times the cable outer diameter) |
| Technical Standards: |
| GB/T12706.1-2020 |
Share
Describe
Application Scenario:
Based on its structural characteristics, this cable is mainly used for:
- Fixed Laying: Suitable for transmitting electrical energy in AC 50Hz power transmission and distribution lines with a rated voltage of 0.6/1kV and below.
- Typical Application Scenarios: Suitable for installation in indoor areas, tunnels, cable trenches, or pipelines, and can also be directly buried under loose soil. Commonly used in urban power grids, main power supply lines of industrial and mining enterprises, and similar occasions.
- Important Note: The basic YJLV model cable cannot withstand mechanical external forces. For applications in direct burial, environments with slight external forces or vibrations, armor-structured models (e.g., YJLV22 with steel tape armor) should be selected to provide better mechanical protection.
| XLPE Insulated Power Cables | |
| Product Models | |
| Models | Name |
| YJV, YJLV | Copper/Aluminum Core XLPE Insulated, PVC Sheathed Power Cable |
| ZR-YJV, ZR-YJLV | |
| YJV22, YJLV22 | Copper/Aluminum Core XLPE Insulated, Steel Tape Armored PVC Sheathed Power Cable |
| ZR-YJV22, ZR-YJLV22 | |
| YJV32, YJLV32 | Copper/Aluminum Core XLPE Insulated, Steel Wire Armored PVC Sheathed Power Cable |
| ZR-YJV32, ZR-YJLV32 | |
