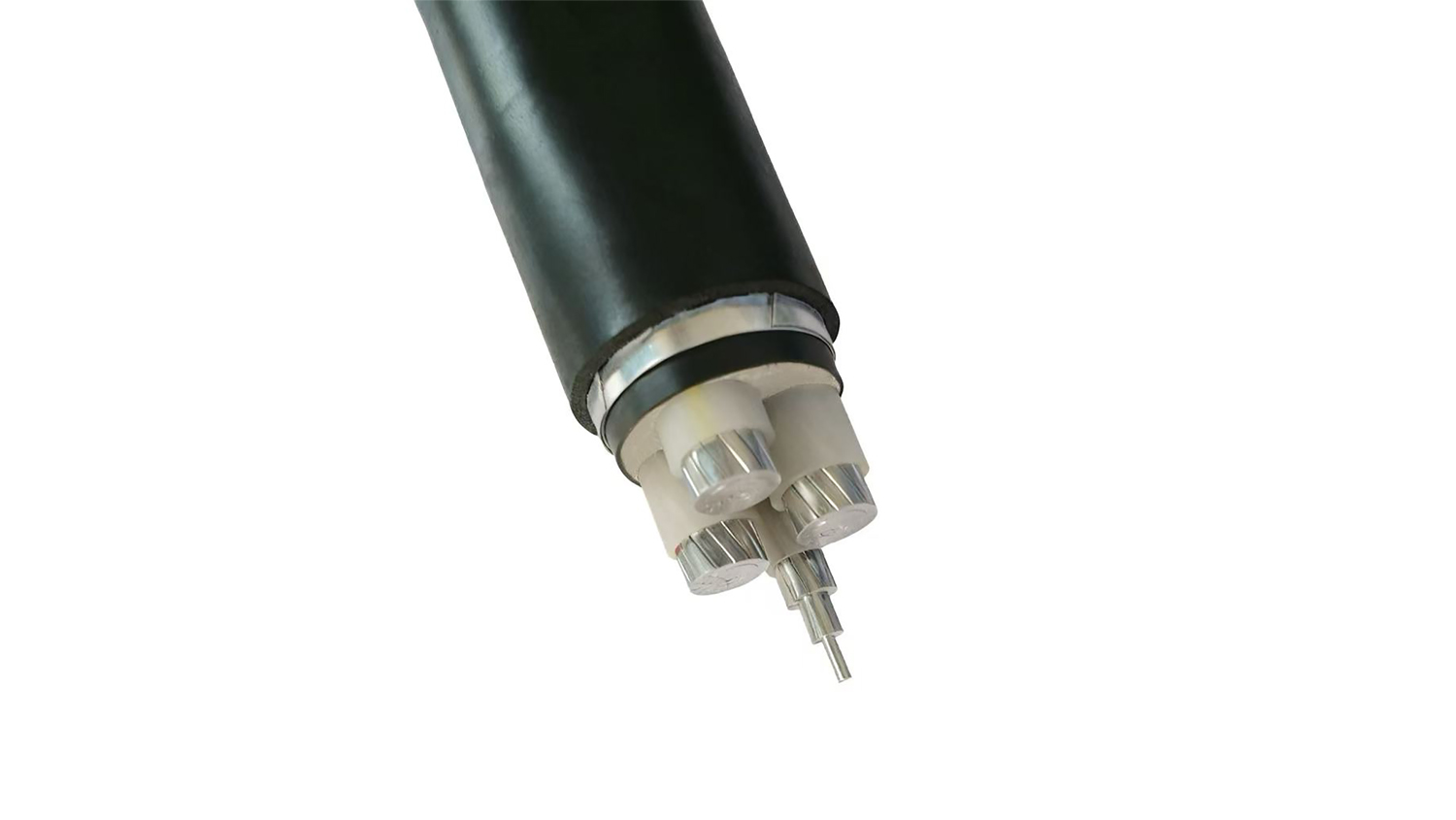

Aluminum Core XLPE Insulated PVC Sheathed Power Cable
Model: YJLV-0.6/1kV 3x95+1x50
| Product Parameters: |
|
Rated Voltage: 0.6/1kV Conductor Material: Stranded Aluminum Conductor Conductor Cross-Section: 3 Cores 95mm² + 1 Core 50mm² Insulation Material: Irradiated Cross-Linked Polyethylene (XLPE) Insulation Thickness: 1.1mm (for 95mm² cores); 1.0mm (for 50mm² core) Sheath Material: Polyvinyl Chloride (PVC) Sheath Thickness: 2.1mm Operating Temperature: -40℃ ~ +90℃ Short-Circuit Withstand Temperature: 250℃ Minimum Laying Temperature: 0℃ Bending Radius: 15D (15 times the cable outer diameter) |
| Technical Standards: |
| GB/T12706.1-2020 |
Share
Describe
Application Scenario:
This cable is mainly used for fixed laying in various environments to transmit and distribute electrical energy. Specific applications include:
- Power lines in indoor areas, tunnels, cable trenches, and pipelines.
- Direct burial in loose soil, but not suitable for environments with large external forces.
- Commonly used in urban underground power grids, outgoing lines of power stations, and internal power supply of industrial and mining enterprises.
| XLPE Insulated Power Cables | |
| Product Models | |
| Models | Name |
| YJV, YJLV | Copper/Aluminum Core XLPE Insulated, PVC Sheathed Power Cable |
| ZR-YJV, ZR-YJLV | |
| YJV22, YJLV22 | Copper/Aluminum Core XLPE Insulated, Steel Tape Armored PVC Sheathed Power Cable |
| ZR-YJV22, ZR-YJLV22 | |
| YJV32, YJLV32 | Copper/Aluminum Core XLPE Insulated, Steel Wire Armored PVC Sheathed Power Cable |
| ZR-YJV32, ZR-YJLV32 | |
